SHENPENG A1-PB Pedestal+DS-9C+CP6000 folding infeed high speed PP woven bag closing system

FOB Reference Price:Get Latest Price
$2,000.00 - $4,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
A1-PB+DS-9C+CP6000
Max. Sewing Speed:
2,700 s.p.m
Lead Time:
Quantity(Sets) 1 - 100000 >100000
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Industrial Sewing Machine
Place of Origin:
Hebei, China
Brand Name:
SHENPENG
Stitch Formation:
Chain Stitch
Max. Sewing Thickness:
8mm (5/16 in.)
Stitch Length:
7-10.5mm
Power:
550W
Overall Dimensions:
540x380x570mm
Feed Mechanism:
Drop Feed
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Key Selling Points:
Long Service Life
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
Gear
Product Type:
bag closing sewing machine
Automatic Grade:
Automatic
Air Supply:
0.4 MP 3.5Nl/min
Sewing Capacity:
500-800 bags/hour
Stitch Type:
Single needle double thread chain stitch 401
Driven Type:
Electric
Thread Chain Cutter:
Pneumatic guillotine type crepe tape cutter
Lubrication:
Full closed oil bath
Needle:
DR-H30
Weight:
40kg
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Shipping with high quality package
Port
China main seaport or airport
Lead Time :
Quantity(Sets) 1 - 100000 >100000
Est. Time(days) 30 To be negotiated

SHENPENG A1-PB Pedestal+DS-9C+CP6000 folding infeed high speed PP woven bag closing system



Product Description



 Applications



1.The fastest and most popular single needle double thread chain stitch high speed bag closer sewing machine ;



2.Equipped with pneumatic guillotine type crepe tape cutter;



3.Full closed lubricating system, no need for oiling and available for dust and corrosive condition;



4.Sewing speed up to 2700 rpm, designed for stitching all sorts of fill bags.





DS-9C could replaced YaoHan N980AC and Union Special 80800ULM





SPECIFICATIONS

Model

DS-9C

Max. Sewing Speed

2,700 s.p.m

Max. Sewing Capacity

8mm (5/16 in.), 24 plies of paper

Stitch Length

7~10.5mm

Stitch Type

Single needle double thread chain stitch 401

Feed Type

Drop feed

Thread Chain Cutter

Pneumatic guillotine type crepe tape cutter

Air Supply

0.4MP 3.5NI/min

Crepe Tape Width

55mm

Lubrication

Full closed oil bath

Needle

DR-H30

Thread

Polyester 20/6, 20/9 (2×3, 3×3)

Weight

40kg / 48kg

Dimension

540×380×570mm








DS-9C Machine Head







DS-9C



DS-9C  Working Process

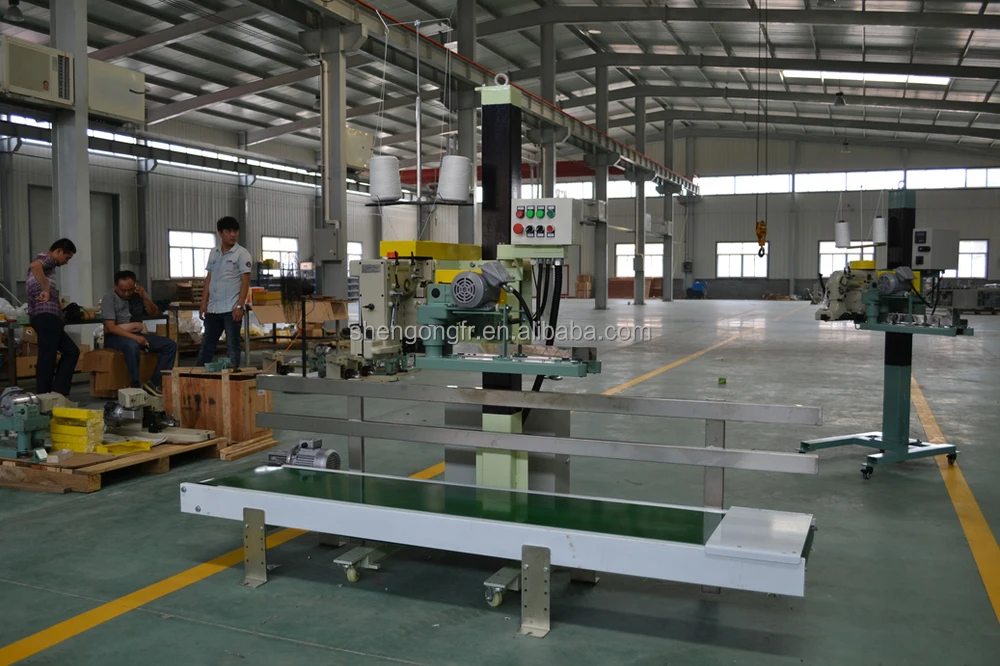

DS-9C Bag Closing System(DS-9C+CP4900 Folding Infeed +A1-PB  Pedestal +Conveyor)

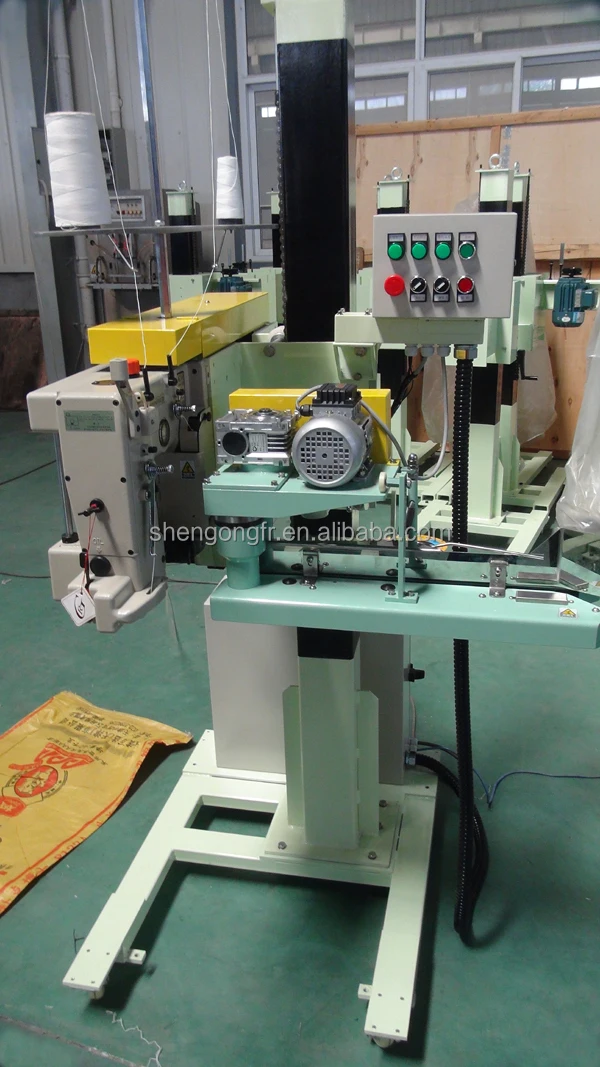

DS-9C Bag Closing System(DS-9C+CP4900 Folding Infeed +A1-PB  Pedestal )

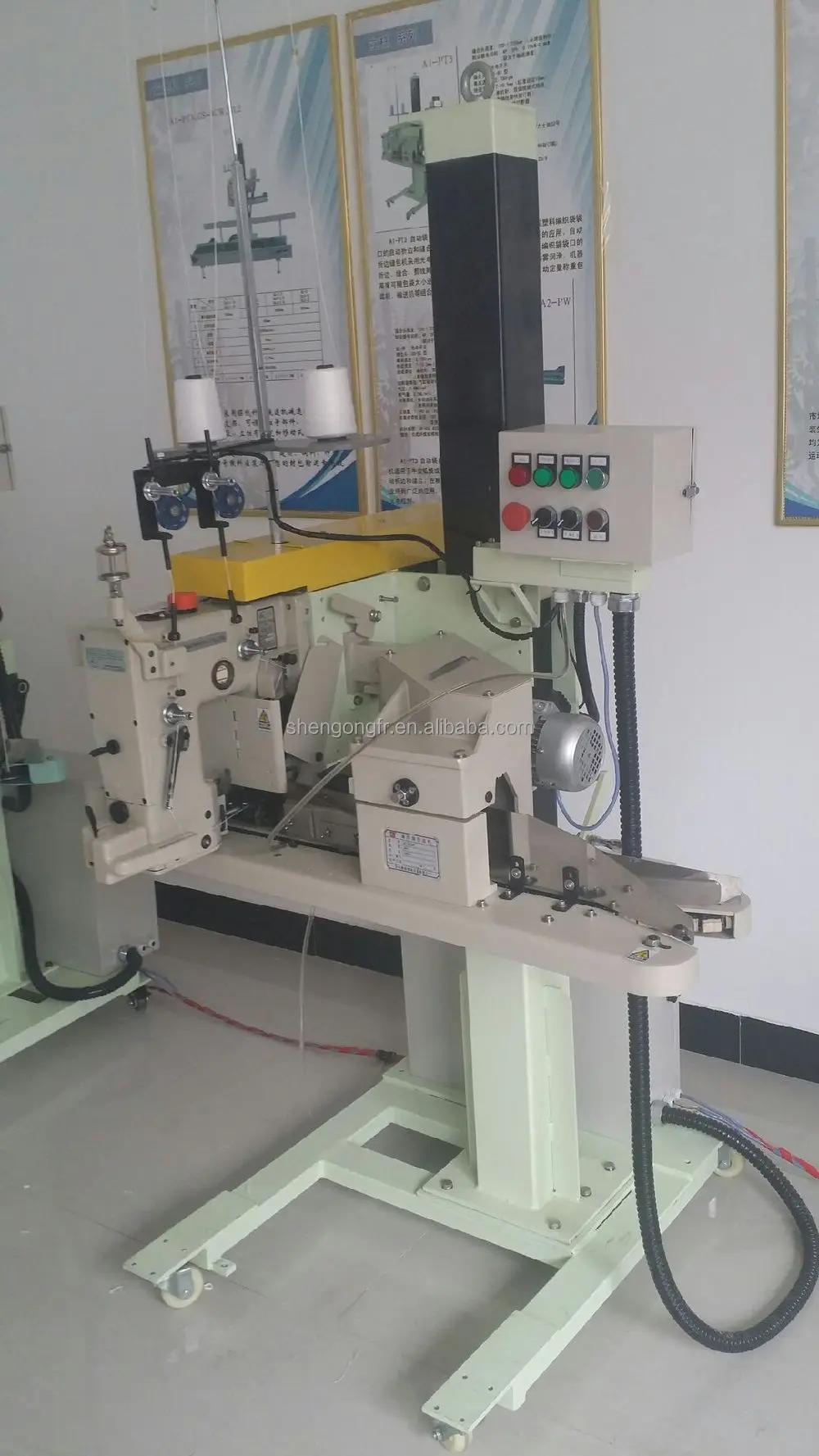

  DS-9C Bag Closing System(DS-9C+CP6000 Folding Infeed +A1-PB  Pedestal )







A1-PB Pedestal_.jpg

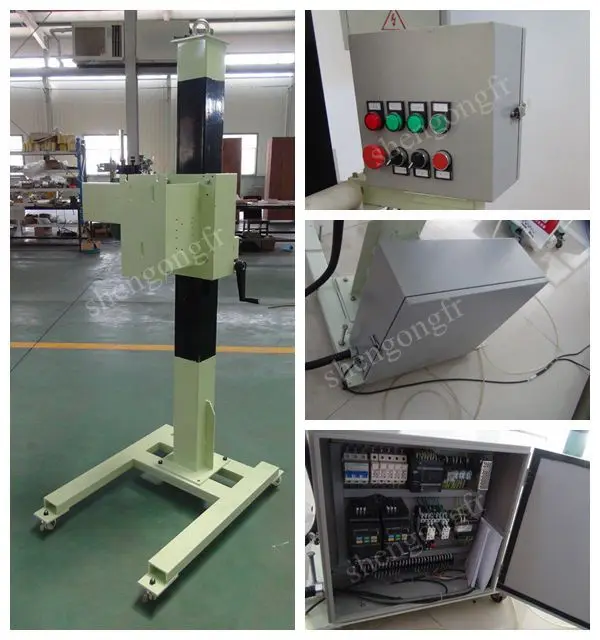

A1-PB Pedestal

(contain motor, columns, frequency conversion control cabinet, electric cabinet)





Buying Guides




Packaging & Shipping




FAQ



1. Q: Do you have your own export right ?



    A: Yes, we are able to export the sewing machine to any country or region



2. Q: What service you can supply?



    A: Model recommendation, sample making, technical consulting, after-service support



3. Q: Could i visit your factory ?



    A: Yes, at the same time you can enjoy more favorable price if buy sewing machine



4. Q: Is your machine could replace Union Special or Newlong sewing machine function?



    A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.



5. Q: Do you supply spare parts?



    A: Yes, Our company produce sewing machine and spare parts by our selves and with fast

         lead time,best price.



6. Q: What gurantee you supply?



    A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper,

         throat plate, feed dog, etc.
